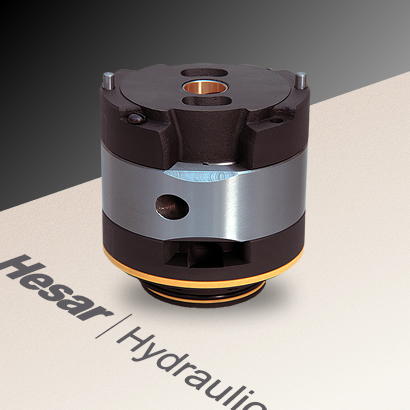

Model Cole:

(F3-)	PC-	25V	-5	-R
Prefix	Cartridge Kits Mark	Series	Geometric Displacement	Rotation
F3-Viton seals Omit-If not required	PC-Single pump cartridge kits double pump shaft end PCT-Double pump cover end pump cartridge kits	20V	2、3、4、5、6、7、8、9、10、11、12、14	Viewed from shaft end L-CCW R-CW
		25V	10、12、14、17、19、21
		35V	21、25、30、35、38
		45V	42、45、50、57、60、66、75

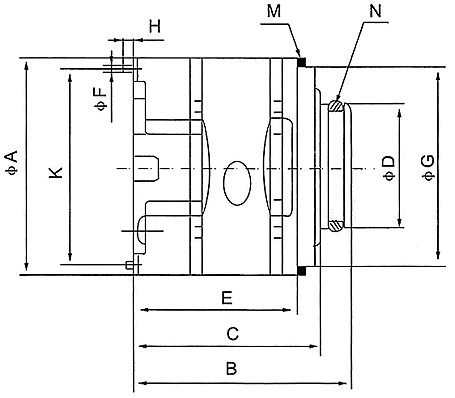

Shape Dimensions:

Series	ФA	B	C	ФD	E	ФF	ФG	H	K	M-Gasket	N-O Ring
20V	82.5	81.5	70.1	47	61.5	4.8	76.2	7	73.6	82.76×76.26×3.5	40×3.5
25V	96.8	98.8	87	52.2	71.2	4.8	90.5	7	88.19	97×91×3.5	44×3.53
35V	114.3	117.7	105	72.2	90.3	6.4	108	7	103.94	114.5×108.5×3.5	63.09×3.53
45V	133.35	141.1	129.6	80.2	105.5	6.4	127	5	123.8	133.6×127.6×3.5	71×3.55

Series	Inner spline dentiform parameter of rotor
	Modulus	Number of teech	Pressure angle	Major diameter	Minor diameter
20V	48/96	30	45°	16.67	15.56
25V	48/96	40	45°	21.9	20.86
35V	40/80	37	45°	24.38	23.1
45V	12/24	14	30°	32.59	27.6
