PV2R Series
Vane Pump
Vane Pump
Introduction:
PV2R series low noise vane pumps were developed specially for the operation at lower noise, which are of high performace reasonable structure.
accurate processin substitute the same kinds of pumps imported or introduced from foreigh countries and widely used for machine-tool plastics
inlection moulding machine. press metallurgical machinery engineering machiner and so on.
PV2R Series Single Pumps Model Code:
Technical Data：
PV2R Series Double Pumps Model Code
PV2R series low noise vane pumps were developed specially for the operation at lower noise, which are of high performace reasonable structure.
accurate processin substitute the same kinds of pumps imported or introduced from foreigh countries and widely used for machine-tool plastics
inlection moulding machine. press metallurgical machinery engineering machiner and so on.

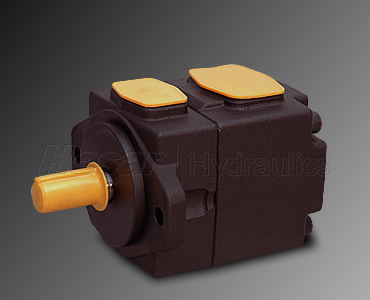

PV2R Series Single Pumps Model Code:
| PV2R* | * | (F) | -* | * | * | 22 |
| Series | Displacement | Mounting | Shaft | Rotation | Outlet Position | Design |
| PV2R1 | 6,8,10,12,14,17,19,23,25,28,31 | F:Flange Mounting L:Foot Mounting |
1-Standard 2-Str.Key |
(Viewed from shaft end of pump) L-CCW R-CW |
(Viewed from shaft end of pump) A-Upper B-Bottom L-Left R-Right |
10 |
| PV2R2 | 26,33,41,47,53,59,65 | |||||
| PV2R3 | 52,60,66,76,85,94,116,125,136,153 |
Technical Data：
| Model | Displacement (mL/r) |
Max Pressure(MPa) | Input Power | Speed (r/min) | Weight(Kg) | |||
| Special oil | Antiwear oil | Common oil | Min | Max | ||||
| PV2R1-6 | 6.0 | 21 | 17.5 | 16 | 3.4 | 750 | 1800 | 9.0 |
| -8 | 8.2 | 4.4 | ||||||
| -10 | 9.7 | 4.9 | ||||||
| -12 | 12.6 | 6.0 | ||||||
| -14 | 14.0 | 6.5 | ||||||
| -17 | 17.1 | 7.8 | ||||||
| -19 | 19.1 | 8.7 | ||||||
| -23 | 23.0 | 10.4 | ||||||
| -25 | 25.3 | 11.5 | ||||||
| -28 | 28.1 | 12.6 | ||||||
| -31 | 31.0 | 16 | 16 | 14.5 | ||||
| PV2R2-26 | 26.6 | 21 | 17.5 | 14 | 12.7 | 600 | 1800 | 19.0 |
| -33 | 33.3 | 15.5 | ||||||
| -41 | 41.3 | 18.6 | ||||||
| -47 | 47.2 | 20.7 | ||||||
| -53 | 52.5 | 23.8 | ||||||
| -59 | 58.2 | 26.5 | ||||||
| -65 | 64.7 | 29.3 | ||||||
| PV2R3-52 | 52.2 | 21 | 17.5 | 14 | 23.4 | 600 | 1800 | 36.7 |
| -60 | 59.6 | 26.6 | ||||||
| -66 | 66.3 | 29.4 | ||||||
| -76 | 76.4 | 33.1 | ||||||
| -85 | 84.9 | 36.5 | ||||||
| -94 | 93.6 | 40.1 | ||||||
| -116 | 115.6 | 16 | 16 | 48.9 | ||||
| -125 | 125.0 | 36.3 | 1200 | |||||
| -136 | 135.2 | 39.5 | ||||||
| -153 | 153.0 | 44.5 | ||||||
| PV2R4-125 | 125.0 | 17.5 | 17.5 | 14 | 54.3 | 600 | 1800 | 60.2 |
| -136 | 136.0 | 60.8 | ||||||
| -153 | 153.8 | 66.5 | ||||||
| -184 | 184.0 | 81.4 | ||||||
| -200 | 200.0 | 88.0 | ||||||
| -237 | 237.0 | 102.0 | ||||||

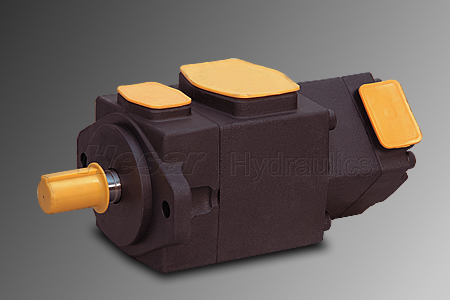

PV2R Series Double Pumps Model Code
| PV2R** | -* | -* | (F) | -* | * | * | 22 |
| Series | Displacement | Displacement | Mounting | Shaft | Rotation | Outlet Position | Design |
| PV2R12 | 6,8,10,12,14,17,19,23,25,28,31 | 26,33,41,47,53,59,65 | F:Flange Mounting L:Foot Mounting |
1-Standard 2-Str.Key |
(Viewed from shaft end of pump) L-CCW R-CW |
(Viewed from shaft end of pump) See image below |
10 |
| PV2R13 | 6,8,10,12,14,17,19,23,25,28,31 | 52,60,66,76,85,94,116,125,136,153 | |||||
| PV2R23 | 26,33,41,47,53,59,65 | 52,60,66,76,85,94,116,125,136,153 |
